Distribution transformers are the unsung workhorses of the modern electrical grid, silently stepping down high-voltage electricity for safe residential and commercial use. While the internal core and copper windings handle the heavy electrical lifting, the outer shell—the transformer tank—plays an equally vital role. It is far more than a simple steel container. The tank is a highly engineered environmental shield and thermal management system responsible for the safety, efficiency, and longevity of the entire unit.
Here is why the engineering behind the transformer tank is absolutely critical.
1. Superior Thermal Management
Transformers generate immense heat during continuous operation. If this heat isn’t aggressively managed, the internal cellulose insulation degrades rapidly, inevitably leading to a catastrophic short circuit. The tank itself is designed to act as a massive, passive radiator. Through the strategic integration of cooling fins, radiators, and corrugated steel walls, the tank drastically increases the surface area available for the internal insulating oil to transfer heat to the ambient air. Efficient heat dissipation keeps the core at an optimal temperature, directly maximizing the transformer’s load capacity.
2. Environmental and Physical Protection
Most distribution transformers are deployed outdoors, fully exposed to extreme elements—blistering UV radiation, torrential rain, coastal salt spray, and sub-zero temperatures. A poorly fabricated tank will quickly succumb to rust and moisture ingress. High-quality tanks are built from robust mild steel or stainless alloys and coated with specialized anti-corrosive finishes, such as hot-dip galvanization or durable epoxy paints. This creates an impenetrable barrier that keeps the sensitive internal windings completely dry and secure from airborne contaminants.
3. Pressure Containment and Leak Prevention
Insulating oil expands and contracts dynamically with temperature fluctuations. The tank must possess the structural elasticity and strength to handle these constant internal pressure changes without permanently deforming or rupturing. Furthermore, even a microscopic weak point in a weld can lead to slow oil leaks. Top-tier distribution transformer tank manufacturers utilize advanced automated welding technologies and conduct rigorous pressure and dye-penetrant testing to guarantee a hermetic seal. Preventing leaks not only stops environmental contamination but also ensures the oil retains its crucial dielectric strength.
Sourcing The Right Manufacturing Partner
Because the tank directly dictates the reliability and lifespan of the electrical unit, transformer OEMs cannot afford to cut corners on fabrication. Sourcing enclosures from reliable distribution transformer tank suppliers ensures that every unit adheres to precise dimensional tolerances and strict international grid standards.

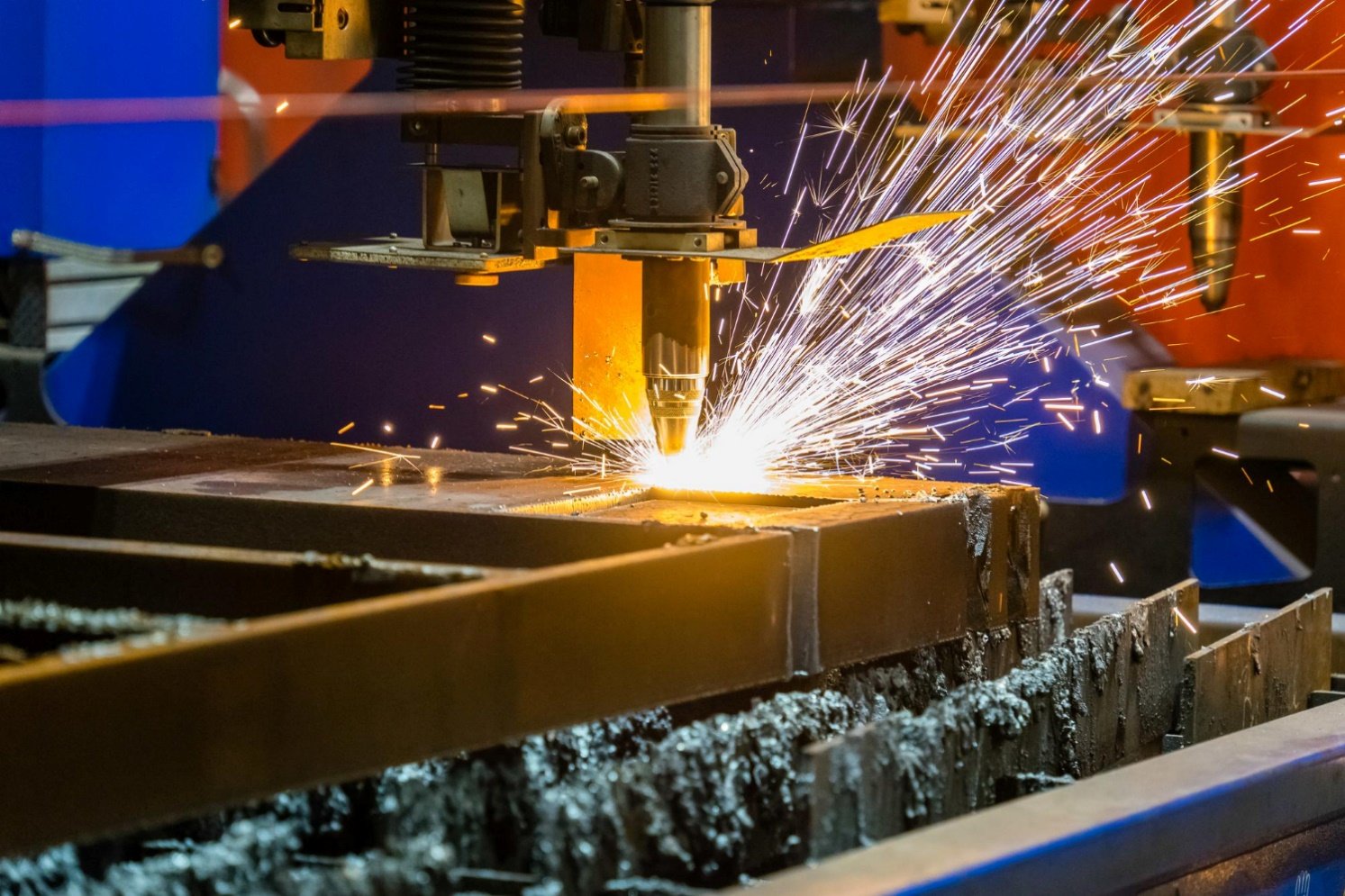

As a premier transformer tank manufacturer, Shrao Engineering understands that the structural integrity of your equipment is non-negotiable. We specialize in fabricating precision-engineered, heavy-duty tanks designed to optimize thermal performance and endure the harshest operational environments. By combining advanced metallurgical expertise with state-of-the-art welding processes, we deliver enclosures that protect your critical assets for decades.
Don’t let a subpar enclosure compromise the efficiency of your electrical infrastructure. Contact Shrao Engineering today to discuss your custom transformer tank requirements and secure the ultimate protection for your power distribution systems.
