Everything You Should Know About Power Transformers

Power transformers are critical components in electrical systems, playing a vital role in the transmission and distribution of electricity. These essential devices are responsible for stepping up or stepping down voltage levels, ensuring efficient power transfer across vast distances. In this comprehensive guide, we’ll explore the world of power transformers, their importance in the energy sector, and their applications in various industries.

What Are Power Transformers?

Power transformers tank are static electrical devices that transfer electrical energy between two or more circuits through electromagnetic induction. They consist of two or more windings wrapped around a magnetic core, typically made of laminated steel. The primary winding receives electrical energy from the source, while the secondary winding delivers it to the load.

How Do Power Transformers Work?

The operation of power transformers is based on the principle of electromagnetic induction. When alternating current flows through the primary winding, it creates a changing magnetic field in the core. This magnetic field induces a voltage in the secondary winding, transferring electrical energy between the two circuits.

The ratio of turns in the primary and secondary windings determines the voltage transformation. If the secondary winding has more turns than the primary, the voltage is stepped up. Conversely, if the secondary has fewer turns, the voltage is stepped down.

Types of Power Transformers

1. Step-up transformers: Used to increase voltage for long-distance transmission
2. Step-down transformers: Used to decrease voltage for distribution to end-users
3. Auto-transformers: Have a single winding with taps for different voltage levels
4. Three-phase transformers: Used in three-phase power systems
5. Oil-filled transformers: Use oil for insulation and cooling
6. Dry-type transformers: Use air or other gases for insulation

Power transformers are the backbone of electrical power systems, enabling the efficient transmission and distribution of electricity. They play a crucial role in:

1. Voltage regulation: Maintaining consistent voltage levels throughout the power grid
2. Power transmission: Enabling long-distance electricity transfer with minimal losses
3. Electrical isolation: Providing galvanic isolation between primary and secondary circuits
4. Power distribution: Stepping down voltage for safe use in homes and businesses

Power transformers find applications in various industries and sectors, including:

1. Power generation plants: Stepping up voltage for transmission
2. Substations: Stepping down voltage for distribution
3. Industrial facilities: Providing appropriate voltage levels for machinery and equipment
4. Renewable energy systems: Integrating solar and wind power into the grid
5. Transportation: Powering electric trains and charging stations for electric vehicles

Understanding the key components of power transformers is essential for power plant equipment manufacturers and suppliers. The main parts include:

1. Core: Made of laminated steel sheets to reduce eddy current losses
2. Windings: Copper or aluminum conductors wrapped around the core
3. Insulation: Paper, oil, or solid materials to prevent short circuits
4. Bushings: Insulated conductors that connect the windings to external circuits
5. Cooling system: Oil or air circulation to dissipate heat
6. Tap changer: Adjusts the turns ratio to regulate output voltage

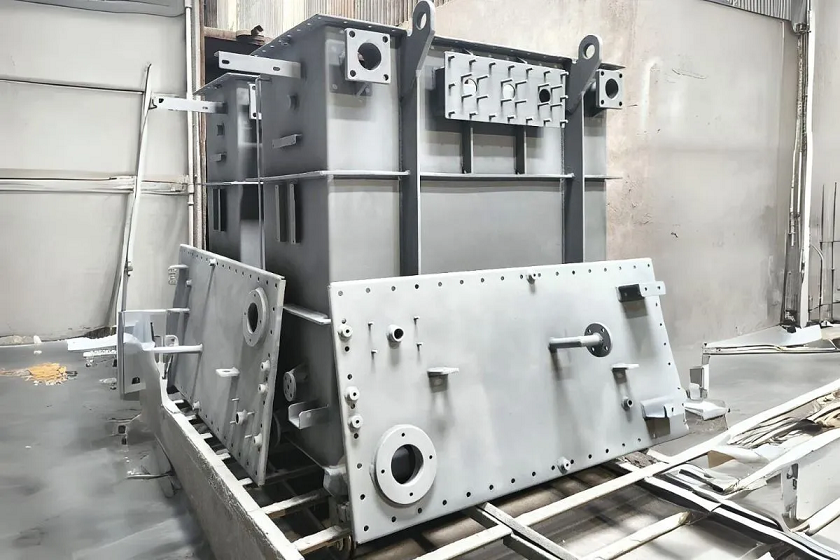

7. Tank: Houses the core, windings, and insulating oil (in oil-filled transformers)

Power transformers are highly efficient devices, typically operating at 98-99% efficiency. However, they do experience some losses:

1. Core losses: Due to hysteresis and eddy currents in the magnetic core
2. Copper losses: Caused by resistance in the windings
3. Stray losses: Resulting from leakage flux and eddy currents in structural parts

Power plant equipment suppliers and manufacturers continually work to improve transformer efficiency and reduce these losses.

Proper maintenance is crucial for ensuring the longevity and reliability of power transformers. Key maintenance activities include:

1. Regular oil testing and filtration
2. Inspecting and cleaning bushings and insulators
3. Checking for oil leaks and corrosion
4. Monitoring winding temperature and dissolved gas levels
5. Performing electrical tests to assess insulation condition

Advanced monitoring systems, such as online dissolved gas analysis (DGA) and partial discharge detection, help identify potential issues before they lead to failures.

Power transformer manufacturers and suppliers face several challenges in designing and operating these critical devices:

1. Increasing power density while maintaining efficiency
2. Improving cooling systems for higher capacity transformers
3. Developing eco-friendly insulating materials
4. Enhancing transformer resilience against geomagnetic disturbances
5. Integrating smart monitoring and diagnostic systems

As the energy landscape evolves, power transformers are adapting to meet new challenges:

1. Smart grid integration: Incorporating digital communication and control capabilities
2. Renewable energy integration: Handling variable power flows from renewable sources
3. High-temperature superconducting (HTS) transformers: Reducing losses and increasing power density
4. Solid-state transformers: Offering greater flexibility and control in power systems

India, as a rapidly growing economy, has a significant demand for power transformers. The country’s power sector is expanding, with numerous power plant equipment manufacturers and suppliers contributing to its growth. Indian companies are not only meeting domestic needs but also exporting transformers to other countries.

The Indian government’s initiatives to enhance the power infrastructure have led to increased investments in the transformer industry. This has resulted in the development of state-of-the-art manufacturing facilities and the adoption of advanced technologies in transformer design and production.

Shrao Engineering: Powering the Future

In the realm of power transformer components, Shrao Engineering stands out as a reliable partner for the energy sector. Specializing in transformer tanks, fabricated products, and heat exchangers, Shrao Engineering contributes to the efficiency and reliability of power transformers across India and beyond.

With a commitment to quality and innovation, Shrao Engineering works closely with power plant equipment manufacturers and suppliers to deliver custom solutions that meet the evolving needs of the industry. Our expertise in fabrication and heat exchange technology plays a crucial role in enhancing the performance and longevity of power transformers.

Power transformers are indispensable components of modern electrical systems, enabling the efficient transmission and distribution of electricity. As the energy landscape continues to evolve, power transformer technology will adapt to meet new challenges, driving innovation in the industry.

Understanding the intricacies of power transformers is essential for professionals in the energy sector, including power plant equipment manufacturers and suppliers. By staying informed about the latest developments in transformer technology, industry players can contribute to the ongoing improvement of electrical infrastructure, ensuring a reliable and sustainable power supply for future generations.
